Mike’s hillclimb 510. Full chassis electrical system designed and wired from scratch.
Scope
- Full chassis harness — engine, lighting, ignition, charging, fuel pump, gauges, motorsport switches.
- Relay/fuse panel, master cutoff, emergency-pull-handle compliant.
- Labeled connectors and replaceable sections for trackside diagnosis.
- Sensor integration: gauges and data-logging touchpoints with analog signal conditioning where needed.
Photos
Transclude of 60655ed3-9d11-4dde-8df7-6f685df2a9dc.jfif

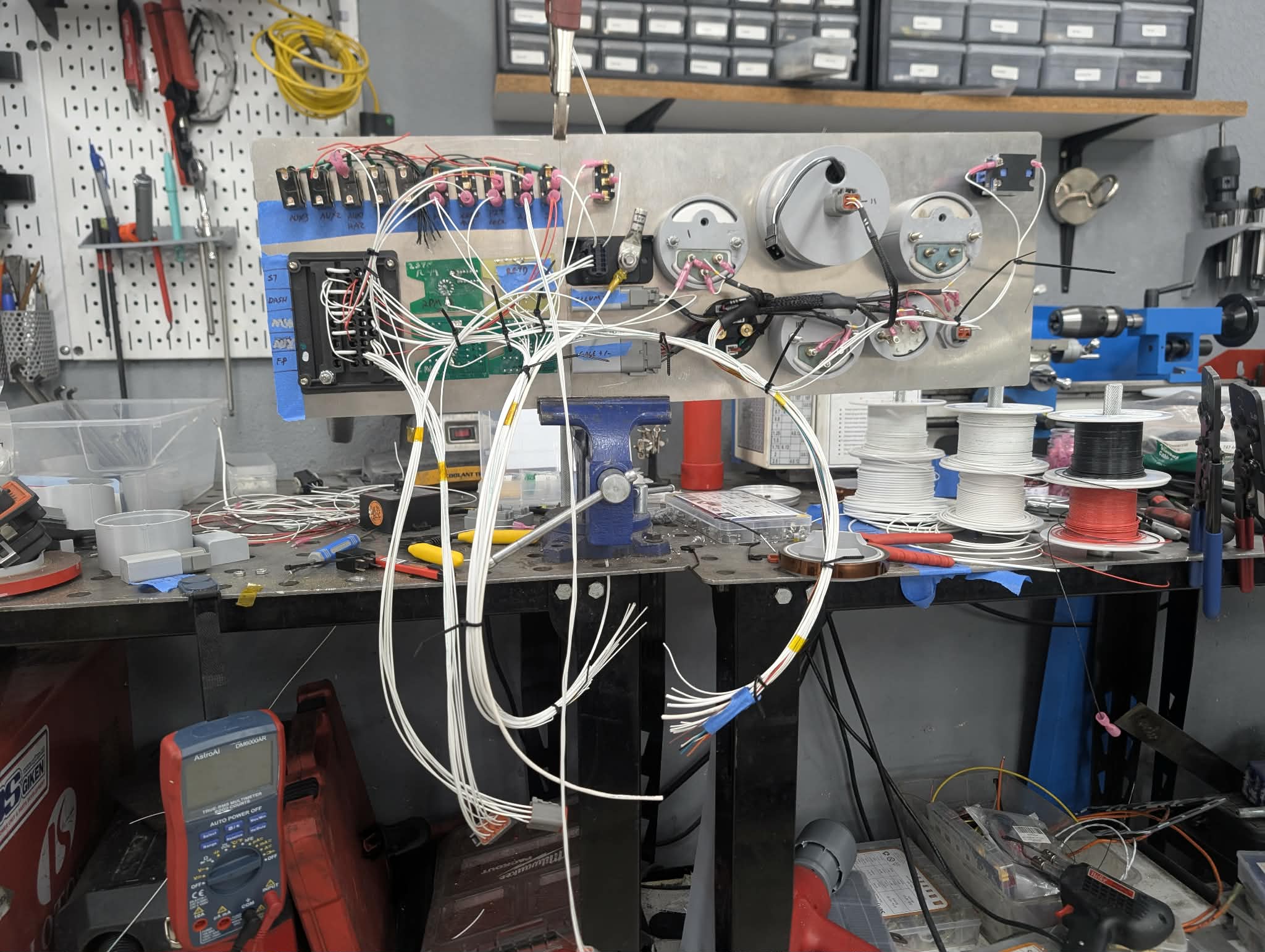

Transclude of b3742930-e31f-45e9-9f92-2034bfe052bc.jfif
Transclude of fd5c3c43-561e-4c32-8af8-86339d39da64.jfif
Reference
motorsports-wiring — harness design notes.
